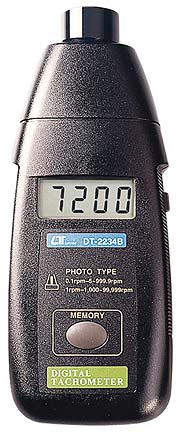

- Wide measuring range from 5 to 100,000 RPM
- 0.1 RPM resolution for the measured value from 5 to 999 RPM
- The last value, max. value, min. value will be stored into the memory automatically & can be obtained by pressing MEMORY CALL BUTTON
- High visible LCD display gives RPM reading exactly with no guessing or errors & saves battery energy
- This tachometer used the exlusive one chip microcomputer LSI circuit & crystal time base, offer the high accurate measurement & fast sampling time
- The use of durable, long lasting components, including a strong, light weight ABS plastic housing, assures almost maintenance free performance for many years
- The housing cabinet has been carefully shaped to fit comfortable in either hand
- Accessories included:
- reflecting tape marks 600 mm
- operating manual
|
 |
SPECIFICATIONS |
| Range: |
5 to 99,999 RPM |
| Resolution: |
0.1
RPM (< 1,000 RPM)
1 RPM (1,000 RPM) |
| Display: |
5
digits, 10 mm (0.4") LCD |
| Accuracy: |
±(0.05%
+ 1 digit) |
| Sampling
time: |
1
second (60 RPM) |
| Time
base: |
Quartz
crystal |
| Detecting
distance: |
50 to 150 mm (2 to 6 inch) |
| Circuit: |
Exclusive
one-chip of microcomputer LSI circuit |
| Power
supply: |
1.5V AA (UM-3) battery x 4 pcs. |
| Operating
temperature: |
0°C
~ 50°C (32°F ~ 122°F) |
| Memory: |
Last
value, max. value, min. value |
| Dimension: |
190
x 72 x 37 mm (7.5 x 2.8 x 1.5 inch) |
| Weight: |
250
gr. (0.55 LB) |
|
|
|

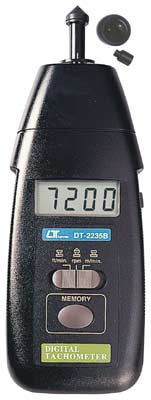

- Wide measuring range from 5 to 100,000 RPM
- 0.1 RPM resolution for the measured value <1000RPM
- The last value, max., value, min. value will be stored into the memory automatically & can be obtained by pressing Memory Call Button
- High visible LCD display gives PPM reading exactly with no guessing or errors & saves battery energy
- This tachometer used the exclusive one chip Micro-Computer LSI circuit & crystal time base, offer the high accurate measurement & fast sampling time
- The use of durable, long lasting components, including a strong, light weight ABS plastic housing, assures almost maintenance free performance far many years
- The housing cabinet has been carefully shaped to fit comfortable in either hand
|
 |
|
SPECIFICATIONS
|
| Display: |
5
digits, 10 mm (0.4") LCD (Liquid Crystal Display), with function
annunciation |
| Measurement
& range: |
| Contact
tach.: |
0.5
to 19,999RPM |
Surface
speed:
(m/min.) |
m/min.
- 0.05 to 1,999.9 m/min.
ft/min. - 0.2 to 6,560 ft/min. |
|
| Resolution: |
| RPM: |
0.1
RPM (< 1.000RPM)
1 RPM (> 1,000RPM) |
| m/min.: |
0.01
m/min (< 100 rn/min.)
0.1 m/min (> 100 m/min.) |
| ft/min.: |
0.1
ft/min. (< 1,000 ft/mn.)
1 ft/min (> 1000 ft/mn.) |
|
Accuracy:
(23°C
± 5 °C) |
±
(0.05% + 1 digit) Spec. tested under environment RF Field Strength less
than 3 V/M & frequency less than the 30 MHz only |
| Time
base: |
Quartz
crystal, 4.194 MHz |
| Circuit: |
Exclusive
one-chip of microcomputer LSI circuit |
| Operating
temperature: |
0°C
to 50 °C ( 32 - 122 °F) |
| Operating
humidity: |
Less
than 80% R.H. |
| Memory: |
Last,
Maximum, Minimum value |
| Battery: |
4
x 1.5V AA (UM-3) battery |
| Power
consumption: |
Approx.
DC 10 mA |
| Size: |
208
x 72 x 37 mm (8.2 x 2.8 x 1.5 inch) |
| Weight: |
280
gr. (0.62 LB) including battery |
| Accessories
included: |
RPM
adapter (Cone), RPM adapter (Funnel), Surface speed test wheel, instruction
manual |
|
|
|
|
|
|
|
|
|
|
|
|
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
|
 |
