Human Vibration

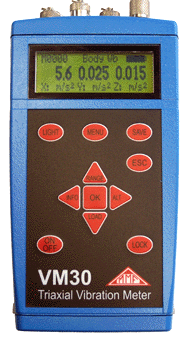

Triaxial Human Vibration Meter
|
- For hand-arm vibration measurement to ISO 5349, whole-body vibration to ISO 263, BS 6841 or ANSI S3.18 and ship vibration to ISO 6954
- Machine vibration can be measured as acceleration, velocity or displacement with selectable frequency ranges between 0.4 Hz and 10 kHz
- Display of true RMS, maximum RMS (MTVV), interval RMS, vibration dose (VDV), total vibration value (aW), peak, maximum peak and crest factor
- Memory for over 1000 measurements with PC interface
- Well suited as vibration dosimeter due to its small dimensions, waterproof design and long battery lifetime
|
|
Inputs
Frequency ranges
Hand-arm weighting filter
Whole-body weighting filter
Frequency ranges for acceleration
Frequency ranges for velocity
Frequency ranges for displacement
Display modes
External connections
Recommended accelerometers |
|
 |
X / Y / Z, IEPE compatible
0.4 - 10000 Hz
Wh to ISO8041
Wb, Wc, Wd, We, Wj, Wk and Wm to ISO8041; Wg to BS 6841
0.4 - 100Hz; 2 - 300Hz; 0.4 - 1000Hz; 10 - 1000Hz;
0.4-10000Hz; 1000 - 10000Hz
2- 300 Hz; 10 - 1000 Hz
6 - 300 Hz
RMS, MTVV, VDV, aW, Peak, PeakMAX, Crest
RS-232, analog outputs X / Y / Z, external supply |
|
|
|
|
|
|
|
|
|
|
| |
|
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
|
 |
